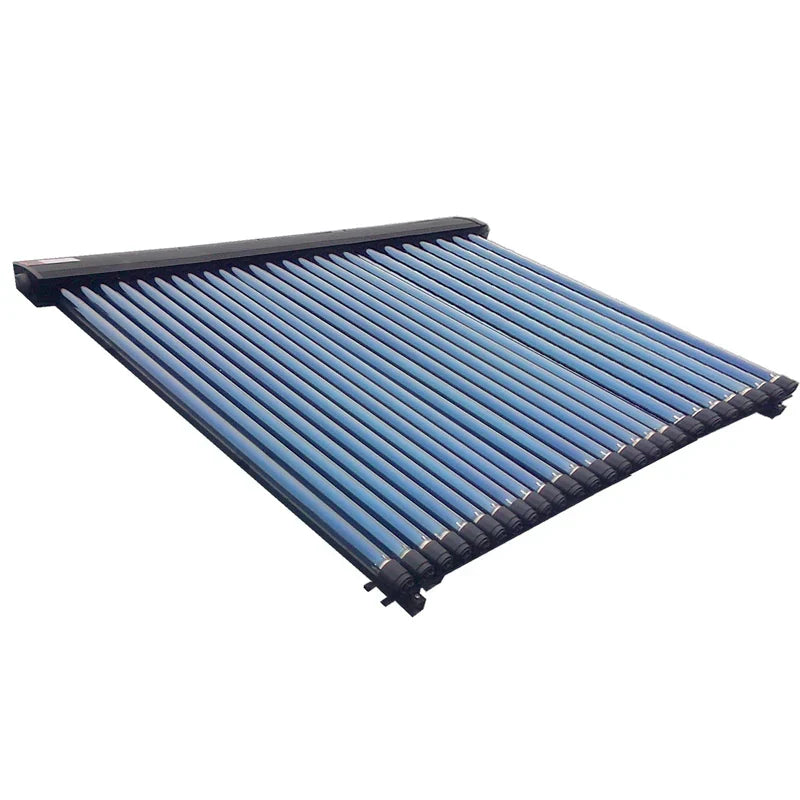

SunScan 30 Eco Evacuated Tube Solar Collector

SunScan 30 Eco Evacuated Tube Solar Collector

Technical Specifications
General Information
• Standard Dimensions - 2000mm x 2090mm.
• Aperture Area - 2.326 m².
• Number of Tubes - 30.
• Empty Weight - 91.5 kg.
• Power output at 1000W/m² - (tm-ta) = 30 °C 1495 W.
• Recommended Flow Rate - 50L – 150 L/ (m2.hr).
• Recommended Tilt Angle - 15° – 75 °.
• Freeze Resistant - Yes, provided appropriate Freeze.
• Transfer Fluid mix ratio (Indirect systems only) - 1 part fluid to 3 parts water for temperatures to -8 °C.
• Frame Colour - Aluminium/Black.
• Sealing Gasket - Silicon Rubber.

Absorber
• Material of Absorber - Cu/Al/SS/N2 on borosilicate glass.
• Thickness of Absorber - 2mm.
• Surface Treatment - ALN/SS-ALN/Cu.
• Dimensions of Absorber - 58/1800.
• Material of Absorber Pipes - Copper.
• Layout of Absorber Pipes - Heat pipe, dry connection.
• Outer Diameter of Absorber Pipe - 8mm.
• Inner Diameter of Absorber Pipe - 6.8mm.
• Material of Header Pipe - Copper.
• Outer Diameter of Header Pipe - 38mm.
• Inner Diameter of Header Pipe - 34mm.
• Material of Contact Sheets - Aluminium.
• Thickness of Contact Sheets - 0.2mm.
• Operator Pressure - 600kPa.
• Test Pressure - 1500kPa.
• Stagnation temperature - 203 °C.

Thermal Insulation
• Insulation Material of Manifold - Polyurethane, Mineral Wool.
• Insulation Material of Absorber - High Vacuum.
